Batteries
Alpha ESS batteries are expandable from 10.1 kWh – 60.6 kWh
Alpha Smile 5 is a high-performance, all-in-one hybrid energy storage system designed to deliver reliable power, smart energy management, and long-term savings.
Our Alpha SMILE 5 10.1 system offered at the Solar Battery Group provides 10.1 kWh of storage per unit. It can expand with plug-in-and-play units, up to 60.6 kWh – a total of 6 modules. It's the perfect larger battery storage system for homes and small businesses wanting real energy independence.
Unlike many battery systems, the AlphaESS Smile5 10.1 kWh Battery also includes a built-in hybrid inverter, meaning there's no need for an external inverter.
This saves costs, simplifies installation, and helps ensure seamless compatibility with any brand of solar panels and most Virtual Power Plants (VPPs) in Australia. Allowing you to unlock even more financial incentives, if you choose to.
AC Coupled
Expandable from 10.1 kWh – 60.6 kWh
Backup with UPS (optional)
Easy Install & Low Maintenance
24/7 Monitoring
Virtual Power Plant (VPP) Ready
The Smile 5's integrated hybrid inverter delivers 5 kW of continuous output, giving your home significantly more flexibility than smaller 3 kW systems. This higher capacity allows you to power a wide range of daily-use appliances at the same time without stressing your system:
Essential loads like: fridges, lights, TVs, computers, fans, and multiple kitchen or laundry devices at once.
Medium to high loads like: microwaves, kettles, washing machines, dishwashers, and vacuums.
Short bursts of high power spike users like: fridges, heat pump hot water units, and power tools.
This means you can run more appliances simultaneously, manage daily power spikes with confidence, and even support light to medium air-conditioning.
The Smile 5 battery is designed to charge quickly during the day and deliver power smoothly when you need it. Its 100-amp charge and discharge capability allows it to absorb solar energy at a fast rate, which means it can refill more of its capacity during sunny hours. The system also has a 96% Depth of Discharge (DoD). In simple terms, this means you can use almost the entire 10.1 kWh of stored energy in each cycle, instead of losing a portion of it like many older battery models. The result is more usable power for your home and better overall value from your battery investment.
The Alpha Smile 5 includes UPS-grade backup capability. During a blackout, the Smile 5 automatically supplies power to the essential circuits connected to its backup port, helping keep critical appliances running safely and without interruption. The system makes this switch to battery power in milliseconds.
This makes it ideal for:
Please note: Activating blackout protection is an opt-in feature with added cost to cover additional labour, such as modifications to your building switchboard.
The Smile 5 is covered by:
Alpha ESS guarantees that the battery will keep at least 80% of its original usable capacity for up to 10 years (120 months).*
*Additional terms and conditions apply.
Despite its impressive capacity, the system is compact and installer-friendly. With a tidy wall-mounted design, it fits comfortably: in garages, utility rooms, exterior walls under cover, or near switchboards or meter panels.
It has a popular, clean, sleek aesthetic that makes it suitable for installations in both residential and commercial settings.
| Modules | Battery Capacity (kWh) | Usable Capacity (kWh) | Approx. Runtime |
|---|---|---|---|
| 1 module | 10.1 kWh | 9.7 kWh | 1 hour 56 minutes |
| 2 modules | 20.2 kWh | 19.4 kWh | 3 hours 53 minutes |
| 3 modules | 30.3 kWh | 29.1 kWh | 5 hours 49 minutes |
| 4 modules | 40.4 kWh | 38.8 kWh | 7 hours 46 minutes |
| 5 modules | 50.5 kWh | 48.5 kWh | 9 hours 42 minutes |
| 6 modules | 60.6 kWh | 58.2 kWh | 11 hours 38 minutes |
Runtimes vary based on load behaviour. Homes rarely run at full output, meaning real-world runtime is typically longer.
The Alpha Smile 5 carries dual protection ratings:
With an operating temperature range of –10°C to 50°C, it's engineered for Australian climates—from cold southern regions to hot northern summers. Installers can position the system wherever it best suits your property layout.
Yes.
Because the Smile5 has an inbuilt hybrid inverter, it can be installed:
This is one of the Smile5's strongest advantages. Its in-built hybrid inverter allows the battery to work alongside almost any existing solar system without requiring homeowners to replace their current inverter. That makes retrofitting simpler, faster, and more affordable.

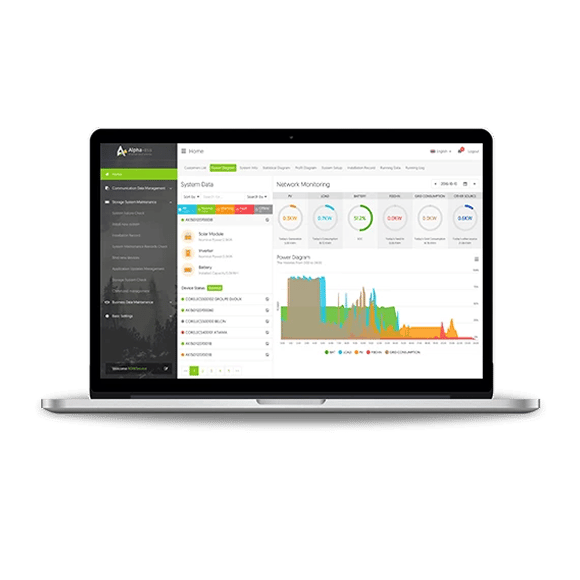

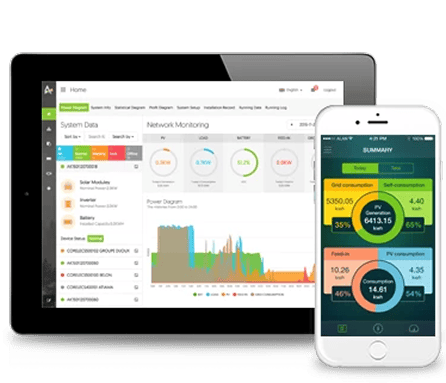

Alpha Cloud is AlphaESS' smart monitoring app that lets you monitor your energy generation and storage, detect issues, and configure all AlphaESS solar batteries and devices. It's a free lifetime platform, designed to help you optimise your usage towards greater energy independence.
Learn more about one of the best selling batteries, from one of the best battery brands on the market? Get a top-line overview in our Alpha ESS blog with the facts you need to know.
Battery Module: SMILE-BAT-10.1P
| Category | Specifications |
|---|---|
| Module Model | SMILE-BAT-10.1P |
| Module Capacity | 10.1 kWh |
| Usable Capacity | 9.7 kWh |
| Capacity Range | 10.1 – 60.6 kWh (96% DoD) |
| Module Nominal Voltage | 48 V |
| Battery Chemistry | LFP (LiFePO₄) |
| Max Modules in Parallel | 6 units |
| Max Charge/Discharge Current | 100 A |
| Operating Temp Range | –10°C to 50°C |
| Protection Rating | IP21 (Indoor) / IP65 (Outdoor) |
| Dimensions (W×H×D) | 610 × 678 × 236 mm |
| Weight | 95 kg |
| Warranty | 5 years product + 10 years battery performance |
Inverter Specifications (Smile5-INV)
| Category | Specifications |
|---|---|
| Model | SMILE5-INV |
| Rated Output Power | 5000 W |
| Rated Output Apparent Power | 5000 VA |
| AC Input Power (Grid) | 7500 W |
| Max PV Input Power | 7500 W |
| MPPT | 2 × MPPT (1 string per MPPT) |
| MPPT Voltage Range | 70–540 V |
| Max PV Input Voltage | 550 V |
| Max PV Input Current | 15 A / 15 A |
| Max Charge/Discharge Current | 100 A |
| Max Charge/Discharge Power | 5000 W |
| Frequency | 50 / 60 Hz |
| Voltage | 230 V |
| Efficiency | 96.5% |
| Backup Mode | UPS |
| Communication | Ethernet / Wi-Fi |
| Weight | 30 kg |
The Alpha SMILE5 battery and the SMILE5 10.1 battery module is listed on the Clean Energy Council approved battery list. This means that these batteries meet Australian best practice standards and international battery safety standards. It also means that it is an eligible battery for state and government solar incentives, such as the SRES in NSW or the Cheaper Home Batteries Program nationwide.
The Storion SMILE 5 received the prestigious iF Design Award in 2018, one of the world's most respected honours for industrial and product design. The award acknowledges the Smile 5's clean architecture and intuitive layout, which make the system approachable and visually distinctive.
The Smile 5 was awarded the Red Dot Design Award in 2018, further reinforcing its status as a standout in global product design. The Red Dot jury praised its unique visual form, stating: “The Storion Smile 5 impresses with its unmistakable appearance. Its wide lines flow towards the control panel, creating a visual and user-friendly accent.”
The Smile 5 series was shortlisted as a Finalist for the 2018 ees AWARD, a program that celebrates innovation in energy storage technology. Being recognised at this level demonstrates that the Smile 5 stands among industry-leading solutions that push forward safety, efficiency, and renewable energy adoption.
As with installing any solar battery, it is important to ensure the Alpha Smile 5 10.1 kWh system is installed correctly by an experienced professional. A high-quality installation affects everything from safety and compliance to performance, system lifespan, and how well your home is supported during a blackout. Proper configuration of the hybrid inverter, backup circuits, cabling, switchboard integration, and monitoring settings is essential for the Smile5 to operate as intended.
Our technicians are trained across our full AlphaESS residential range, including the Alpha Smile 5 10.1 kWh, the Alpha Smile B3, the Alpha Smile B3 Plus, and the Alpha G3. This means they understand the specific requirements of each system, from battery module configuration and inverter setup to essential-load wiring and correct commissioning procedures. They are equipped to handle thermal placement considerations, firmware setup, communication integration, and full system testing to ensure every installation meets both manufacturer and Australian standards.
Solar Battery Group manages the entire process from initial assessment through to installation, commissioning, and performance verification. We also provide local Australian after-sales support so you have help available whenever you need it. If you want your Alpha Smile 5 10.1 kWh battery installed with care, precision, and proven expertise across the entire AlphaESS range, our team is ready to deliver a reliable and professional experience from start to finish.
The AlphaESS range is one of the leading energy storage solutions and service providers in the world. The company specialises in the residential and commercial market, aiming to deliver the most cost-effective and fit-for-purpose solutions. AlphaESS has 10+ subsidiaries providing local services and 40000+ systems actively running in over 50 countries, enabling millions of people to live with reliable, accessible and clean energy.
